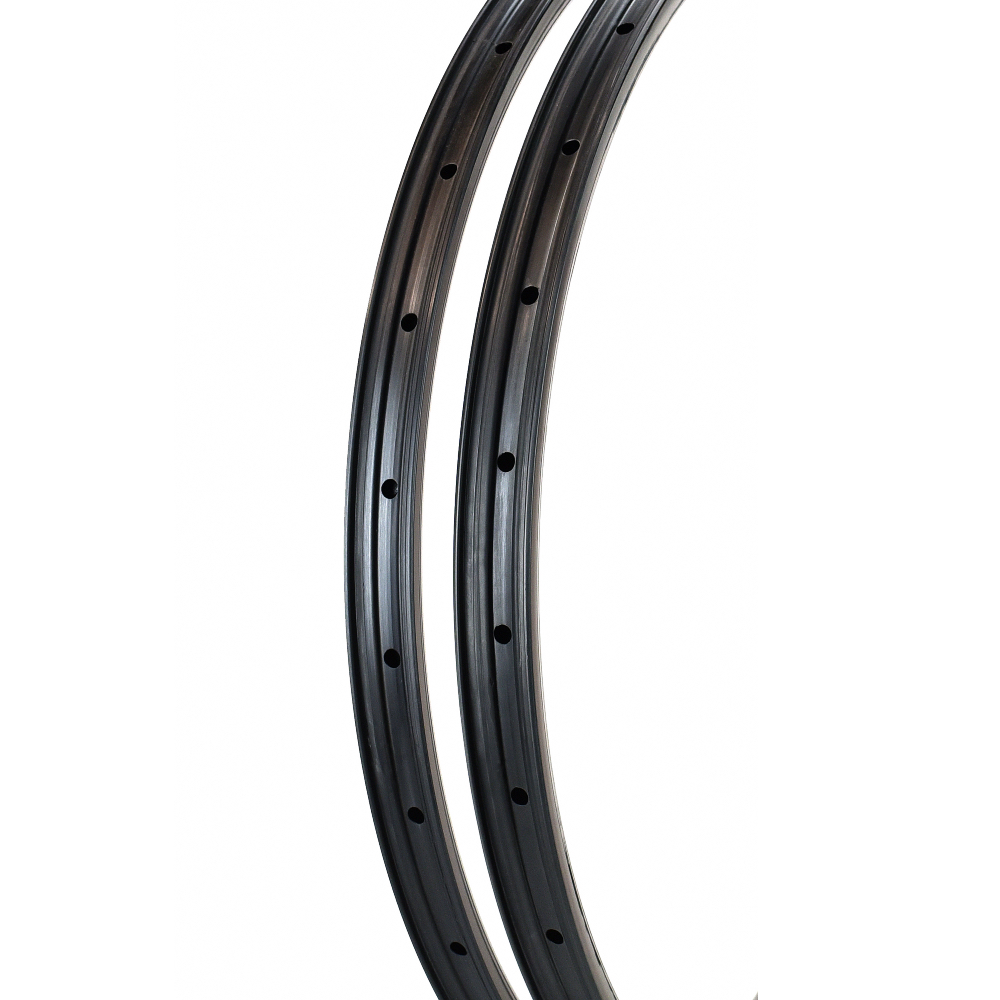

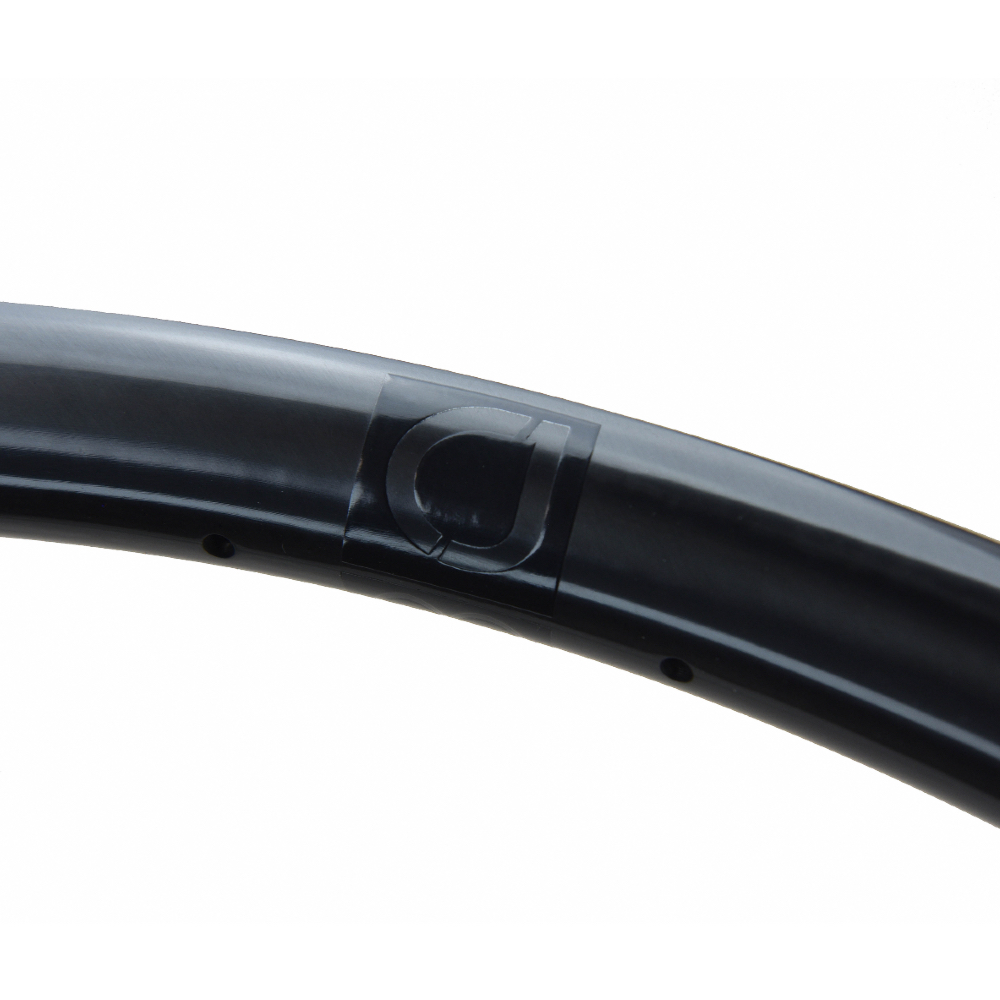

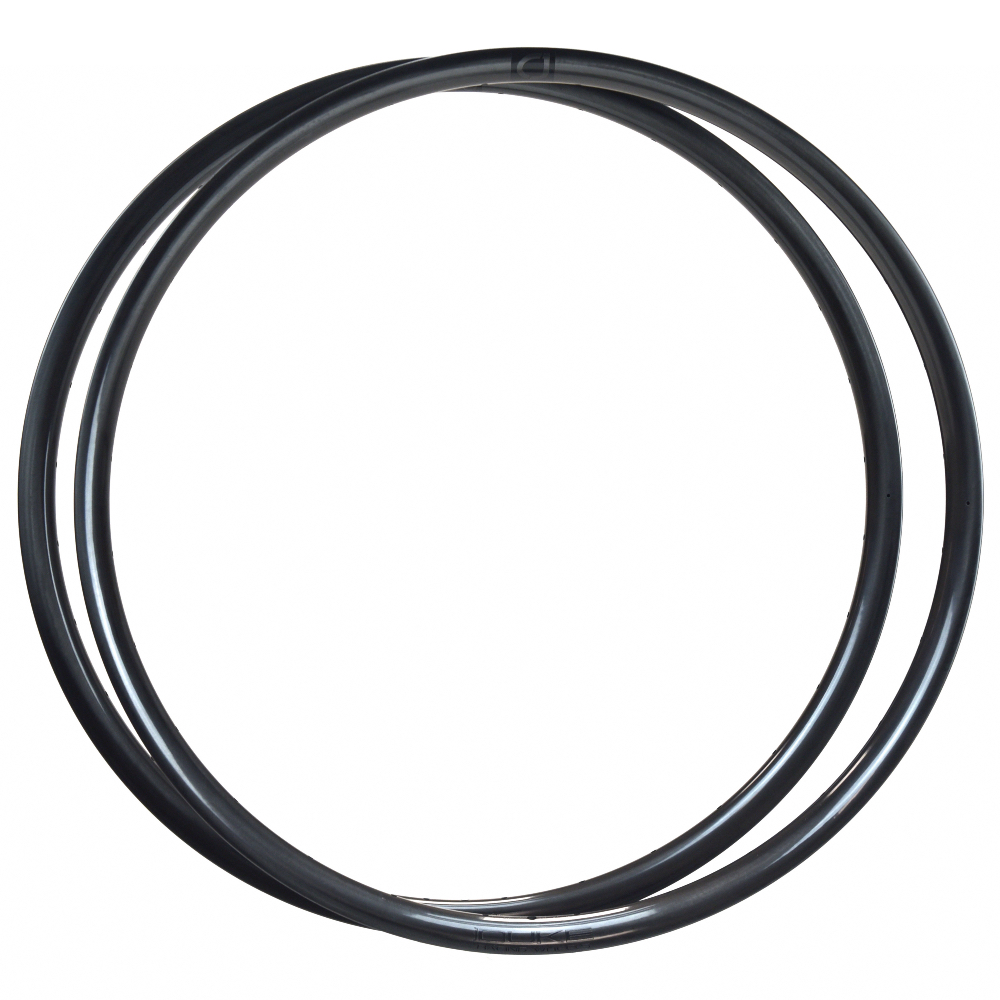

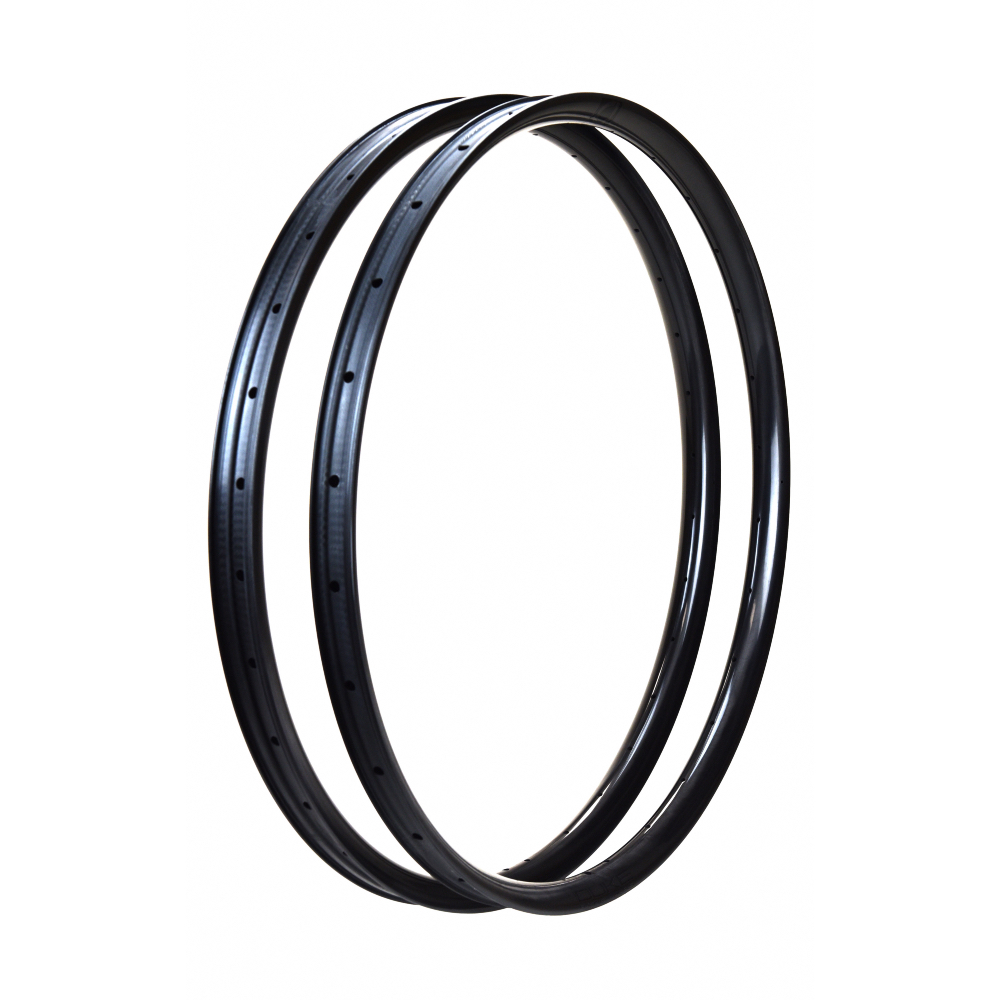

DUKE RIM CRAZY JACK SLS4

SLS4 Super light series 4. The SLS4 series for mountain bikes is 10% lighter and more resistant than the sls3 version thanks to a completely new lay-up and a new resin which not only allow the same lateral stiffness to be maintained but also and above all to considerably improve comfort, vibration filtering and rim performance.

The SLS4 is always manufactured in a sealed atmosphere and does not require any retouching when it comes out of the mould. No rework or varnish, the glossy finish is exceptional!

DATA SHEET

RIM DIAMETER

29"

HOLES NUMBER

28H

RIM PROFILE

ASYMMETRIC

RIM FINISH

UP PAINTLESS

RIM MATERIAL

CARBON

INSIDE WIDTH (MM)

30.0

PRACTICE TYPE

ALL MOUNTAIN E-BIKE

AM

VAE XC

XC ENGAGED

TYPE OF BRAKING

DISC

MAX STRAIN (N)

1200.0

NIPPLE POSITION

EXTERNAL

NIPPLE HEIGHT (MM)

14.0

TYPE OF TYRE

CLINCHER

TUBELESS

POSITION

REAR

VALVE HEIGHT (MM)

44

TAPE WIDTH (MM)

30.0

34.0

MAX PRESSURE (BAR)

2.2B WITH 2.40" TYRE

ERD JANTE(S)

CJ 30 : 600

CJ 33 : 596

SYSTEM MAX WEIGHT (KG)

120

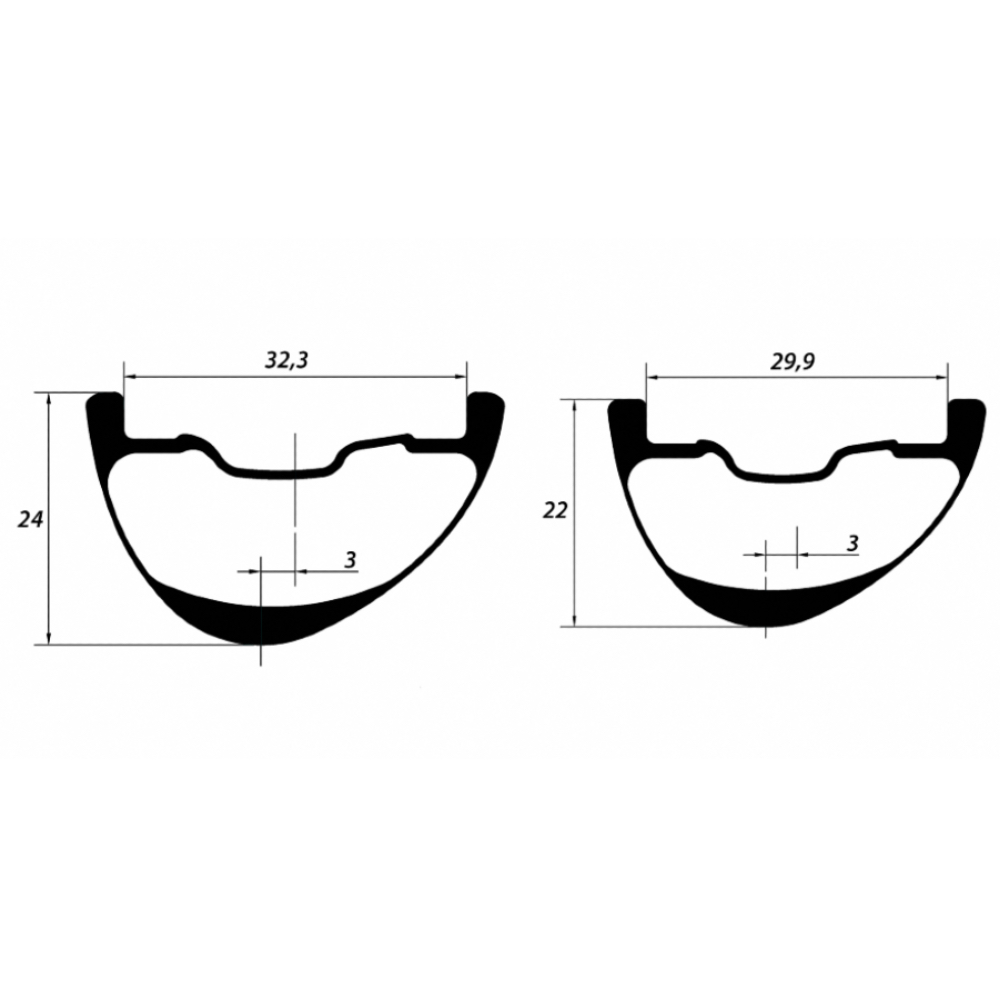

RIM HEIGHT (MM)

22

24

ETRTO (MM)

622.0

RIM OFFSET (MM)

3.0

MOUNTING WITH WASHERS

NON

TYRE SECTION RANGE

53MM 2.10" / 71MM 2.80"

58MM 2.30" / 76MM 3.00"

STICKERS RANGE

DUKE SERIE2 L

TYPE STICKER

L58

WARANTEE

3 YEARS
